AUTOMATIC SHEET FEEDING

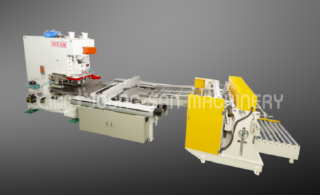

CNC PRESS MACHINE
ROTARY TYPE

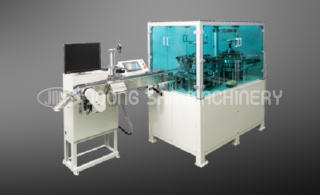

CAP CURLING & SCREW MACHINE
CAPACITY 120~150 pcs / min
ELECTRICITY 380V, 5Kw x 4P
DIMENSION L3000 x W2000 x H2500mm
WEIGHT 3500 Kg
CAPACITY 150~160 pcs / min
ELECTRICITY 380V, 3Kw x 4P
DIMENSION L1000 x W1500 x H800mm
WEIGHT 1200 Kg
This is the machine for curling of the punch formed rudiments of caps by the first step for final figuration of caps.

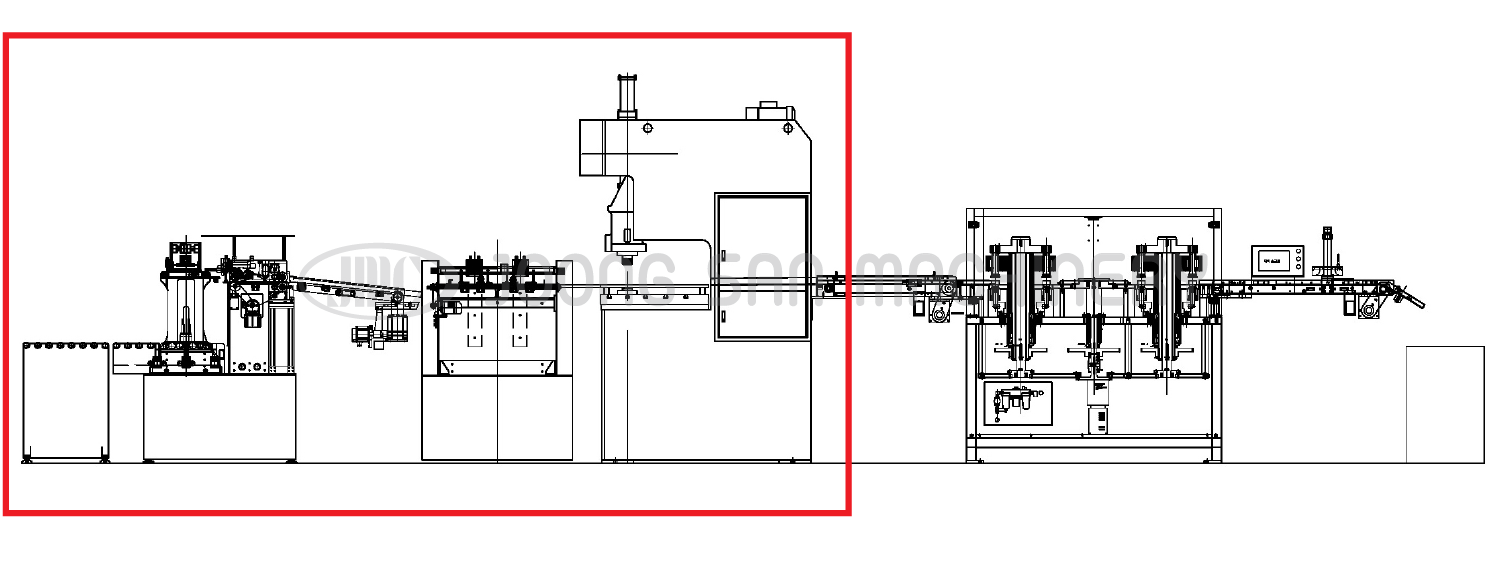

This machine is used for punching into shape for aluminum, metal caps, which is controlled
by PLC is made up by the units of automatic supplier, automatic punching machine.

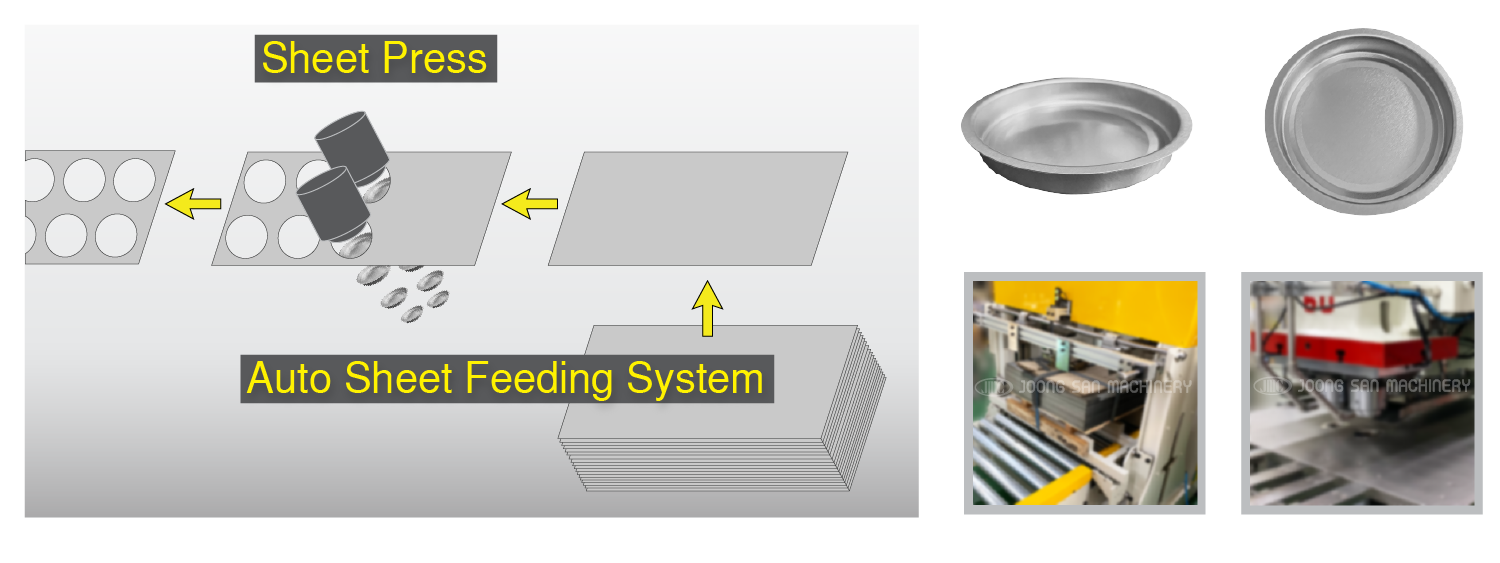

Stack the sheets and the robot will automatically move them to the next level.
The punch formed caps automatically go to the next step for screwing and Curling after punching.
The screw caps are widely used for food, cosmetics and personal care.
They are compatible with vacuum and non-vacuum packing applications and available in a wide range of
diameters, heights and profiles.
Description

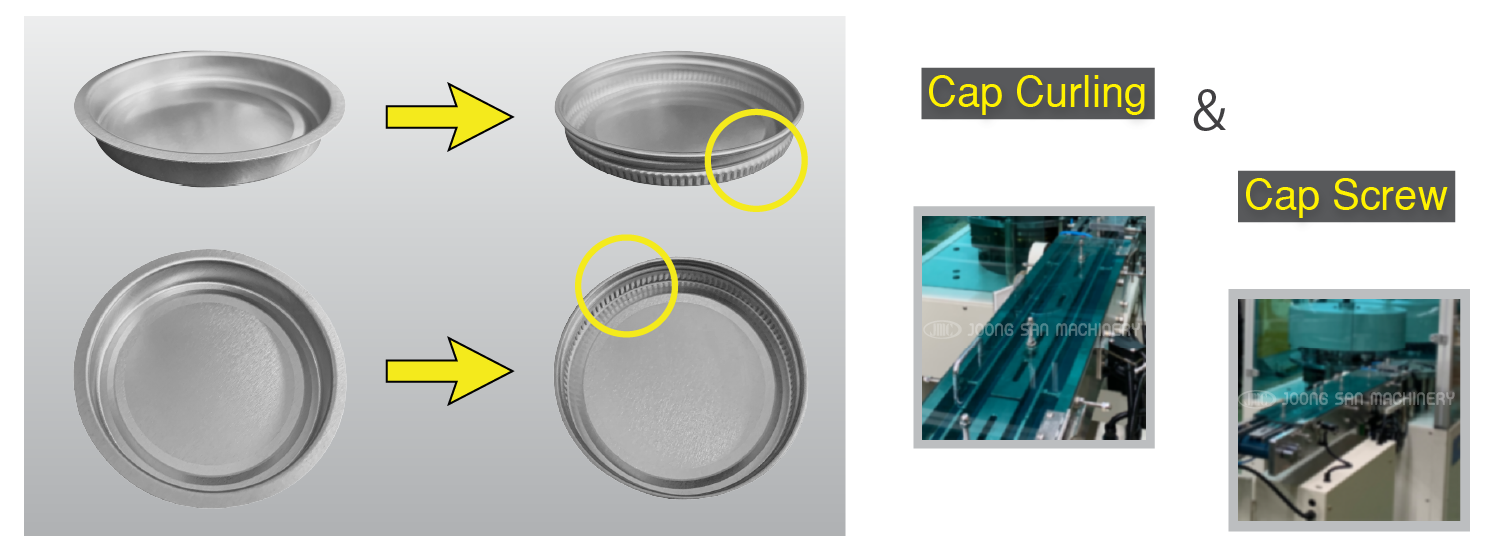

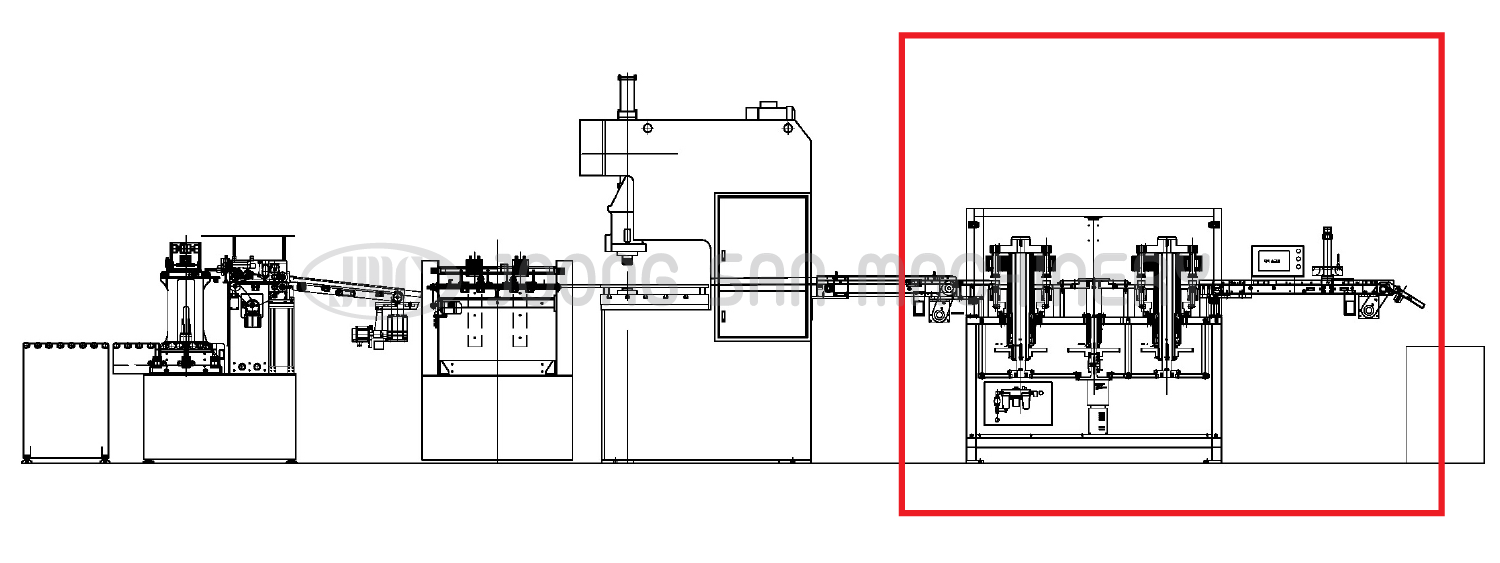

This is the machine for Curling & Screwing of aluminum, metal caps.
When the punch formed rudiments of caps are automatically moved in, the machine will operate
curling & screwing at high speed.
The screw caps provide excellent protection for products.
The screw caps are widely used for food, cosmetics and personal care.
They are compatible with vacuum and non-vacuum packing applications and available in a wide range of
diameters, heights and profiles.
Description
