Aluminum sheet Slitting Machine
CAPACITY 300~400 pcs / min
ELECTRICITY 200v, 380v x 1.5 kw
DIMENSION L1,800 x W1,300 x H1,300 mm
WEIGHT 1,000 kg
This machine is a machine that cut the aluminum sheets to fit a certain size.

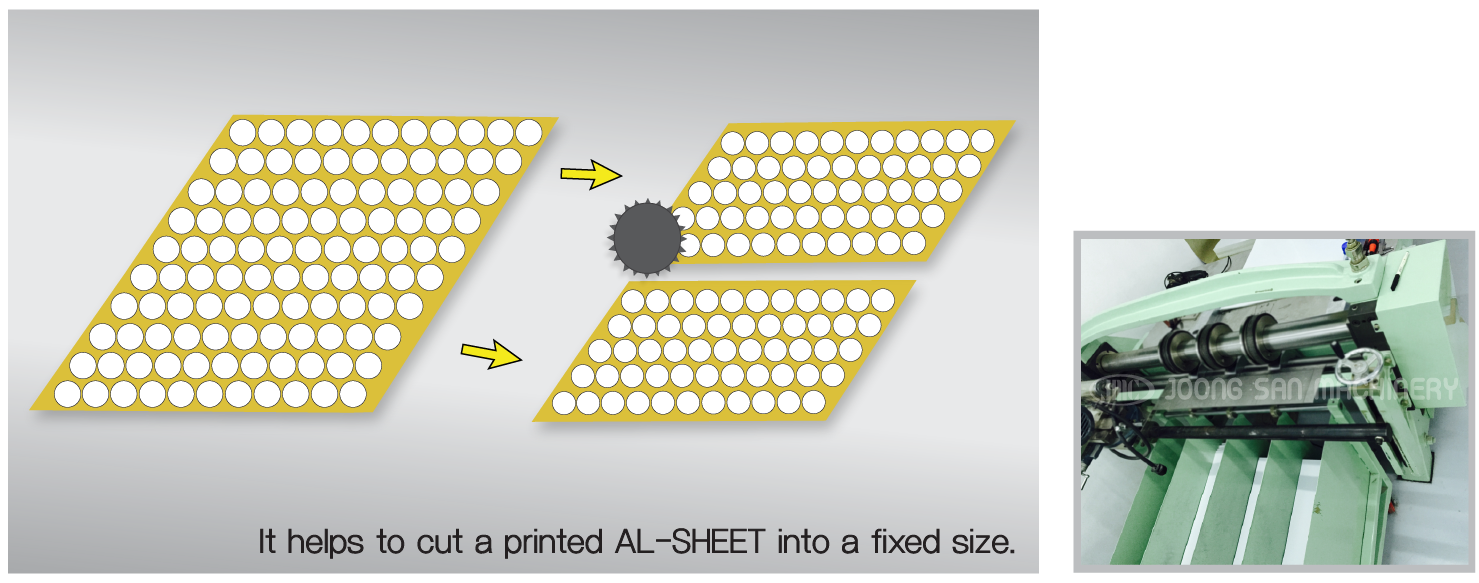

It has an auto grainding system that can cutting a printed AL-SHEET into a fixed size.
Because there is an auxiliary auto-grinding function, the user does not have to take the blades out for
There are two revolving of circular blades on the upper and lower sides of a moving plate that can be
regulated for cutting to control the width size.
The aluminium sheet, which is cut to size, is used to move to a press machine to form the shape of
the aluminium cap.
Easy to operate and maintenance, high rated of qualified products, low power consumption.
